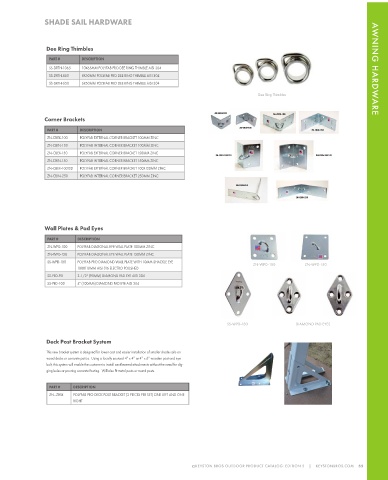

Page 55 - Keyston Awning & Marine Catalog- Digital

SHADE SAIL HARDWARE

Dee Ring Thimbles
PART # DESCRIPTION AWNING SUPPLIES
SS-DRTH-1065 10X65MM POLYFAB PRO DEE RING THIMBLE AISI 304 MARINE HARDWARE
SS-DRTH-850 8X50MM POLYFAB PRO DEE RING THIMBLE AISI 304
SS-DRTH-650 6X50MM POLYFAB PRO DEE RING THIMBLE AISI 304
Dee Ring Thimbles

AWNING HARDWARE
Corner Brackets
PART # DESCRIPTION
ZN-CBEX-100 POLYFAB EXTERNAL CORNER BRACKET 100MM ZINC
ZN-CBIN-100 POLYFAB INTERNAL CORNER BRACKET 100MM ZINC
ZN-CBEX-150 POLYFAB EXTERNAL CORNER BRACKET 150MM ZINC
ZN-CBIN-150 POLYFAB INTERNAL CORNER BRACKET 150MM ZINC
ZN-CBEX-100120 POLYFAB EXTERNAL CORNER BRACKET 100X120MM ZINC
ZN-CBIN-250 POLYFAB INTERNAL CORNER BRACKET 250MM ZINC

Wall Plates & Pad Eyes
PART # DESCRIPTION
ZN-WPD-100 POLYFAB DIAGONAL EYE WALL PLATE 100MM ZINC
ZN-WPD-150 POLYFAB DIAGONAL EYE WALL PLATE 150MM ZINC
SS-WPD-180 POLYFAB PRO DIAMOND WALL PLATE WITH 10MM SHACKLE EYE ZN-WPD-100 ZN-WPD-150
180X110MM AISI 316 ELECTRO POLISHED
SS-PED-90 3-1/2" (90MM) DIAMOND PAD EYE AISI 304
SS-PED-100 4" (100MM) DIAMOND PAD EYE AISI 304

SS-WPD-180 DIAMOND PAD EYES

Deck Post Bracket System

This new bracket system is designed for lower cost and easier installation of smaller shade sails on
wood decks or concrete patios. Using a locally sourced 4” x 4” or 4” x 6” wooden post and eye
bolt, this system will enable the customer to install cantilevered attachments without the need for dig-
ging holes or pouring concrete footing. Will also fit metal posts or round posts.

PART # DESCRIPTION
ZN--ZB14 POLYFAB PRO DECK POST BRACKET (2 PIECES PER SET) ONE LEFT AND ONE
RIGHT

KEYSTON BROS OUTDOOR PRODUCT CATALOG: EDITION 5 | KEYSTONBROS.COM 55
