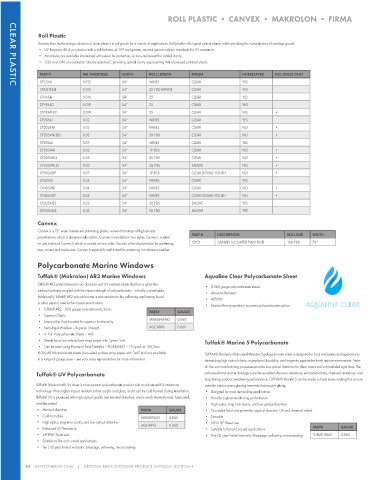

Page 50 - Keyston Awning & Marine Catalog- Digital

ROLL PLASTIC • CANVEX • MAKROLON • FIRMA

Roll Plastic
Keyston Bros stocks a large selection of clear plastics in roll goods for a variety of applications. Roll plastics offer good optical clarity, while providing the conveniences of yardage goods.
• UV Resistant. All of our plastics with a mil thickness of .019 and greater, exceed marine industry standards for UV resistance.
• Most styles are available interleaved with paper for protection, or non-interleaved for added clarity.
• .030 and .040 are available “double-polished”, providing optical clarity approaching that of pressed polished sheets.

PART # MIL THICKNESS WIDTH ROLL LENGTH FINISH INTERLEAVED FULL ROLLS ONLY
CP1254I 0.012 54” VARIES CLEAR YES
CLEAR PLASTIC
CPAD1254I 0.012 54” 33 YDS APPROX CLEAR YES
CP1654I 0.016 54” 25 CLEAR YES
CP1954I2 0.019 54” 25 CLEAR YES
CP1954NI2 0.019 54” 25 CLEAR NO •
CP2054I 0.02 54” VARIES CLEAR YES
CP2054NI 0.02 54” VARIES CLEAR NO •
CP2054NI285 0.02 54” 28 YDS CLEAR NO •
CP3054I 0.03 54” VARIES CLEAR YES
CP3054NI 0.03 54” 19 YDS CLEAR NO •
CP3054NI3 0.03 54” 38 YDS CLEAR NO •
CP3054NI3S 0.03 54” 38 YDS SMOKE NO •
CP3054DP 0.03 54” 19 YDS CLEAR DOUBLE POLISH NO •
CP4054I 0.04 54” VARIES CLEAR YES
CP4054NI 0.04 54” VARIES CLEAR NO •
CP4054DP 0.04 54” VARIES CLEAR DOUBLE POLISH NO •
CP2054I3S 0.02 54" 20 YDS SMOKE YES
CP3054I3S 0.03 54" 20 YDS SMOKE YES
Canvex
Canvex is a 72” wide, translucent patterning plastic, woven from strips of high density
PART # DESCRIPTION ROLL SIZE WIDTH
polyethylene, which is dimensionally stable. Canvex is available in two styles, Canvex I, coated
on one side and Canvex II which is coated on two sides. Canvex is the ideal product for patterning CPC2 CANVEX II (COATED TWO SIDE) 100 YDS 72"
tops, covers and enclosures. Canvex is especially well suited for patterning in inclement weather.

Polycarbonate Marine Windows

Tuffak® (Makrolon) AR2 Marine Windows Aqualine Clear Polycarbonate Sheet

Tuffak® AR2 polycarbonate is an abrasion and UV resistant plastic that has a glass-like
• 0.060 gauge polycarbonate sheets
surface hardness coupled with the impact strength of polycarbonate – virtually unbreakable.
• Abrasion Resistant
Additionally Tuffak® AR2 polycarbonate is also resistant to the yellowing and hazing found
• 48"X96"
in other plastics used in the marine environment.
• Keyston Bros proprietary economy polycarbonate option
• Tuffak® AR2 - .060 gauge polycarbonate sheets
PART# GAUGE
• Superior Clarity
MKR4896AR2 0.060
• Sewn rather than bonded for superior functionality
• Semi-Rigid Window – Superior Strength AQC4896 0.060
• 4’ X 8’ Polycarbonate Sheets – AR2
• Sheets have two-side surface wrap paper with “green” text Tuffak® Marine 5 Polycarbonate
• Can be sewn using Diamond Point Needles – ND1351622 – 10/pack or 100/box
NON-AR Polycarbonate sheets (two-sided surface wrap paper with “red” text) are available TUFFAK® (formerly Makrolon®)Marine 5 polycarbonate sheet is designed for boat enclosures and applications
in a range of gauge sizes – see your sales representative for more information. demanding high optical clarity, exceptional durability, and longevity against the harsh marine environment. State-
of- the-art manufacturing processes provide low optical distortion for clear views and unparalleled sight lines. The
Tuffak® UV Polycarbonate advanced hard coat technology provides excellent abrasion resistance, enhanced clarity, chemical resistance, and
long lasting outdoor weathering performance. TUFFAK® Marine 5 can be easily cut and sewn, making this a more
Tuffak® (Makrolon®) UV sheet is a transparent polycarbonate product with an advanced UV resistance versatile option versus glazing materials that require gluing.
technology. It has higher impact resistance than acrylic and glass, and it can be cold-formed during installation. • Designed for most demanding applications
Tuffak® UV is produced with high optical quality and minimal distortion, and is easily thermoformed, fabricated, • Provides highest weathering performance
and decorated. • High optics, long term clarity, and low optical distortion
• Minimal distortion PART# GAUGE • Two-sided hard coat protection against abrasion, UV and chemical attack
• Cold-formable MKR4896UV 0.060 • Sewable
• High optics, long term clarity, and low optical distortion • 50"X110" Sheet size
AQC4896 0.060
• Enhanced UV Resistance • Suitable to flat and curved applications PART# GAUGE
• 48"X96" Sheet size • Five (5) year limited warranty: Breakage, yellowing, microcracking TUF50110M5 0.060
• Suitable to flat and curved applications
• Ten (10) year limited warranty: breakage, yellowing, microcracking

50 KEYSTONBROS.COM | KEYSTON BROS OUTDOOR PRODUCT CATALOG: EDITION 5
