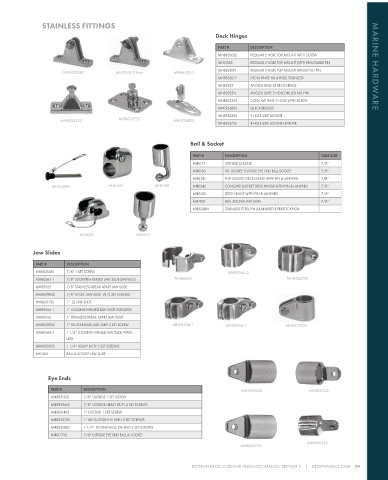

STAINLESS FITTINGS
Deck Hinges

PART # DESCRIPTION
MH88320SS REGULAR 2 HOLE TOP MOUNT WITH SCREW
MH210SS REGULAR 2 HOLE TOP MOUNT WITH REMOVABLE PIN MARINE HARDWARE
MH88320SS MH210SS 2 Hole MH88320-3 MH88320N REGULAR 2 HOLE TOP MOUNT DRILLED NO PIN
MH88320-3 DECK HINGE HD 4 HOLE STAINLESS
MH88322 ANGLED BASE SS DECK HINGE
MH88322N ANGLED BASE 2 HOLE DRILLED NO PIN
MH88323SS CONCAVE BASE 2 HOLE WITH SCREW
MH0236BSS QUICK RELEASE
MH88323SS 2 HOLE SIDE MOUNT
MH88327SS
MH88323SS MH0236BSS
MH88327SS 4 HOLE SIDE MOUNT HD PLATE

Ball & Socket

PART # DESCRIPTION TUBE SIZE
MH0177 OUTSIDE EYE END 7/8"
MH0180 90- DEGREE OUTSIDE EYE END BALL SOCKET 7/8"
MH0241 FLAT SOCKET DECK HINGE WITH PIN & LANYARD 7/8"
MH244BN MH1001 MH0180 MH0242 CONCAVE SOCKET DECK HINGE WITH PIN & LANYARD 7/8"
MH0301 DECK HINGE WITH PIN & LANYARD 7/8"
MH1001 BALL SOCKET JAW SLIDE 7/8"
MH224BN STAINLESS STEEL PIN & LANYARD & PLASTIC KNOB

MH0301 MH0177

Jaw Slides

PART # DESCRIPTION
MH88316SS 7/8” 1 SET SCREW MH88366-2
MH88365-1 7/8” LOCKING HINGED JAW SLIDE STAINLESS MH88365 MH88329SS
MH88365 7/8” STAINLESS BREAK APART JAW SLIDE
MH88398SS 7/8” HD SS JAW SLIDE W/2 SET SCREWS
MH88317SS 1” SS JAW SLIDE
MH88366-1 1” LOCKING HINGED JAW SLIDE STAINLESS
MH88366 1” STAINLESS BREAK APART JAW SLIDE
MH88399SS 1” HD STAINLESS JAW SLIDE 2 SET SCREW MH88354-1 MH88366-1 MH88398SS
MH88366-2 1 1/4” LOCKING HINGED JAW SLIDE STAIN-
LESS
MH88329SS 1 1/4” HEAVY DUTY 2 SET SCREWS
MH1001 BALL & SOCKET JAW SLIDE

Eye Ends

PART # DESCRIPTION MH88396SS MH88313SS
MH88313SS 7/8” OUTSIDE 1 SET SCREW
MH88396SS 7/8” OUTSIDE HEAVY DUTY 2 SET SCREWS
MH88314SS 1” OUTSIDE 1 SET SCREW
MH88397SS 1” HD OUTSIDE EYE WITH 2 SET SCREWS
MH88328SS 1 1/4” HD STAINLESS EYE END 2 SET SCREWS
MH0177SS 7/8" OUTSIDE EYE END BALL & SOCKET
MH88314SS
MH88397SS

KEYSTON BROS OUTDOOR PRODUCT CATALOG: EDITION 5 | KEYSTONBROS.COM 59
