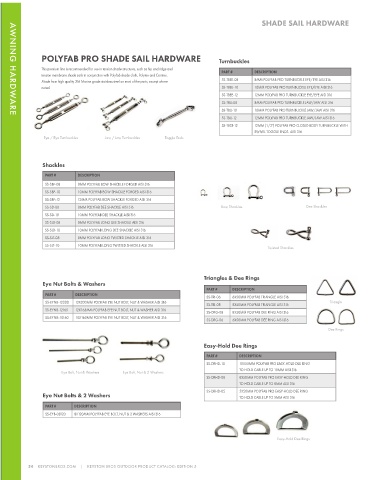

Page 54 - Keyston Awning & Marine Catalog- Digital

SHADE SAIL HARDWARE

POLYFAB PRO SHADE SAIL HARDWARE Turnbuckles

This premium line is recommended for use in tension shade structures, such as hip and ridge and PART # DESCRIPTION
tension membrane shade sails in conjunction with Polyfab shade cloth, Polytex and Comtex.
Made from high quality 316 Marine grade stainless steel on most of the parts, except where SS-TBEE-08 8MM POLYFAB PRO TURNBUCKLE EYE/EYE AISI 316
noted. SS-TBEE-10 10MM POLYFAB PRO TURNBUCKLE EYE/EYE AISI 316
SS-TBEE-12 12MM POLYFAB PRO TURNBUCKLE EYE/EYE AISI 316
SS-TBJJ-08 8MM POLYFAB PRO TURNBUCKLE JAW/JAW AISI 316
AWNING SUPPLIES
SS-TBJJ-10 10MM POLYFAB PRO TURNBUCKLE JAW/JAW AISI 316
MARINE HARDWARE
AWNING HARDWARE
SS-TBJJ-12 12MM POLYFAB PRO TURNBUCKLE JAW/JAW AISI 316
SS-TBST-12 12MM (1/2") POLYFAB PRO CLOSED BODY TURNBUCKLE WITH
SWIVEL TOGGLE ENDS AISI 316
Eye / Eye Turnbuckles Jaw / Jaw Turnbuckles Toggle Ends

Shackles
PART # DESCRIPTION
SS-SBF-08 8MM POLYFAB BOW SHACKLE FORGED AISI 316
SS-SBF-10 10MM POLYFAB BOW SHACKLE FORGED AISI 316
SS-SBF-12 12MM POLYFAB BOW SHACKLE FORGED AISI 316
SS-SD-08 8MM POLYFAB DEE SHACKLE AISI 316 Bow Shackles Dee Shackles
SS-SD-10 10MM POLYFAB DEE SHACKLE AISI 316
SS-SLD-08 8MM POLYFAB LONG DEE SHACKLE AISI 316
SS-SLD-10 10MM POLYFAB LONG DEE SHACKLE AISI 316
SS-SLT-08 8MM POLYFAB LONG TWISTED SHACKLE AISI 316
SS-SLT-10 10MM POLYFAB LONG TWISTED SHACKLE AISI 316
Twisted Shackles

Triangles & Dee Rings
Eye Nut Bolts & Washers
PART # DESCRIPTION
PART # DESCRIPTION
SS-TRI-06 6X50MM POLYFAB TRIANGLE AISI 316
SS-EYNB-12200 12X200MM POLYFAB EYE NUT BOLT, NUT & WASHER AISI 316 Triangle
SS-TRI-08 8X50MM POLYFAB TRIANGLE AISI 316
SS-EYNB-12165 12X165MM POLYFAB EYE NUT BOLT, NUT & WASHER AISI 316
SS-DRG-08 8X50MM POLYFAB DEE RING AISI 316
SS-EYNB-10160 10X160MM POLYFAB EYE NUT BOLT, NUT & WASHER AISI 316
SS-DRG-06 6X50MM POLYFAB DEE RING AISI 316
Dee Rings

Easy-Hold Dee Rings

PART # DESCRIPTION
SS-DRHD-10 10X55MM POLYFAB PRO EASY-HOLD DEE RING
TO HOLD CABLE UP TO 10MM AISI 316
Eye Bolt, Nut & Washers Eye Bolt, Nut & 2 Washers
SS-DRHD-08 8X50MM POLYFAB PRO EASY-HOLD DEE RING
TO HOLD CABLE UP TO 8MM AISI 316
SS-DRHD-05 5X50MM POLYFAB PRO EASY-HOLD DEE RING
Eye Nut Bolts & 2 Washers TO HOLD CABLE UP TO 5MM AISI 316
PART # DESCRIPTION
SS-EYB-08120 8X120MM POLYFAB EYE BOLT, NUT & 2 WASHERS AISI 316

Easy-Hold Dee Rings
