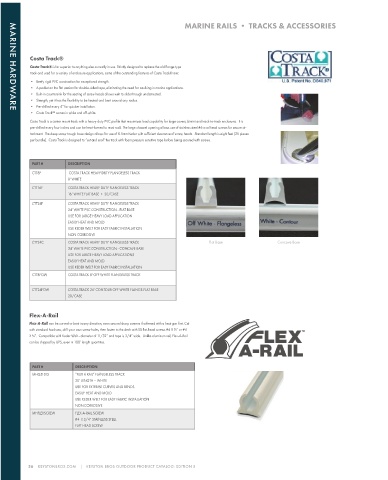

Page 56 - Keyston Awning & Marine Catalog- Digital
P. 56

MARINE RAILS • TRACKS & ACCESSORIES





            Costa Track®
            Costa Track® is far superior to anything else currently in use. Strictly designed to replace the old flange type
            track and used for a variety of enclosure applications, some of the outstanding features of Costa Track® are:
            •  Beefy rigid PVC construction for exceptional strength.
            •  A pocket on the flat version for double-sided tape, eliminating the need for caulking in marine applications.
            •  Built-in countersink for the seating of screw heads allows welt to slide through unobstructed.
            •  Strength, yet it has the flexibility to be heated and bent around any radius.
            •  Pre-drilled every 4” for quicker installation.
     MARINE HARDWARE
            •  Costa Track™ comes in white and off-white.
            Costa Track is a center mount track with a heavy-duty PVC profile that maximizes load capability for large covers, bimini and track-to-track enclosures.  It is
            pre-drilled every four inches and can be heat-formed to most radii. The large channel opening allows use of stainless steel #6 oval head screws for secure at-
            tachment.  The deep screw trough base design allows for use of 8.5mm Keder with sufficient clearance of screw heads.  Standard length is eight feet (25 pieces
            per bundle).  Costa Track is designed to “set and seal” the track with foam pressure sensitive tape before being secured with screws.




            PART #       DESCRIPTION
            CTT8F         COSTA TRACK HEAVY DUTY FLANGELESS TRACK
                         8' WHITE
            CTT16F       COSTA TRACK HEAVY DUTY FLANGELESS TRACK
                         16’ WHITE FLAT BASE • 20/CASE
            CTT24F       COSTA TRACK HEAVY DUTY FLANGELESS TRACK
                         24’ WHITE PVC CONSTRUCTION - FLAT BASE
                         USE FOR LARGE HEAVY LOAD APPLICATION
                         EASILY HEAT AND MOLD
                         USE KEDER WELT FOR EASY FABRIC INSTALLATION
                         NON CORROSIVE
            CTT24C       COSTA TRACK HEAVY DUTY FLANGELESS TRACK           Flat Base               Concave Base
                         24’ WHITE PVC CONSTRUCTION - CONCAVE BASE
                         USE FOR LARGE HEAVY LOAD APPLICATIONS
                         EASILY HEAT AND MOLD
                         USE KEDER WELT FOR EASY FABRIC INSTALLATION
            CTT8FOW      COSTA TRACK 8' OFF WHITE FLANGELESS TRACK

            CTT24FOW     COSTA TRACK 24’ CONTOUR OFF WHITE FLANGE-FLAT BASE
                         20/CASE


           Flex-A-Rail
           Flex-A-Rail can be curved or bent in any direction, even around sharp corners if softened with a heat gun first. Cut
           with standard hacksaw, drill your own screw holes, then fasten to the deck with SS flat-head screws #6 X ¾” or #4
           X ¾”.  Compatible with Keder Welt - diameter of 11/32” and tape is 3/4” wide.  Unlike aluminum rail, Flex-A-Rail
           can be shipped by UPS, even in 100’ length quantities.



            PART #          DESCRIPTION
            MHG51015        “FLEX A RAIL” FLANGELESS TRACK
                            20’ LENGTH – WHITE
                            USE FOR EXTREME CURVES AND BENDS
                            EASILY HEAT AND MOLD
                            USE KEDER WELT FOR EASY FABRIC INSTALLATION
                            NON CORROSIVE
            MHFLEXSCREW     FLEX-A-RAIL SCREW
                            #4  X 3/4” STAINLESS STEEL
                            FLAT HEAD SCREW







           56    KEYSTONBROS.COM    |   KEYSTON BROS OUTDOOR PRODUCT CATALOG: EDITION 5
