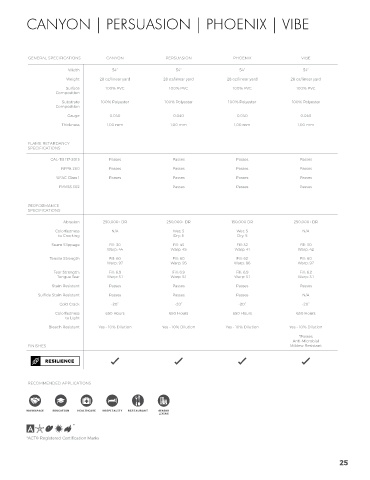

Page 25 - 2023 FR Free Catalog KBC

CANYON | PERSUASION | PHOENIX | VIBE

GENERAL SPECIFICATIONS CANYON PERSUASION PHOENIX VIBE

Width 54” 54” 54” 54”
Weight 28 oz/linear yard 28 oz/linear yard 28 oz/linear yard 28 oz/linear yard
Surface
TVI014 Composition 100% PVC 100% PVC 100% PVC 100% PVC
Vibe - Irish Linen
Substrate 100% Polyester 100% Polyester 100% Polyester 100% Polyester
Composition
Gauge 0.040 0.040 0.040 0.040
Thickness 1.00 mm 1.00 mm 1.00 mm 1.00 mm

FLAME RETARDANCY
SPECIFICATIONS
TVI104 TVI015 CAL-TB 117-2013 Passes Passes Passes Passes
Vibe - Hammock Vibe - Mushroom
NFPA 260 Passes Passes Passes Passes
UFAC Class 1 Passes Passes Passes Passes
FMVSS 302 Passes Passes Passes

PERFORMANCE
SPECIFICATIONS
TVI011 TVI010 TVI105 TVI001 TVI109 Abrasion 250,000+ DR 250,000+ DR 150,000 DR 250,000+ DR
Vibe - Flax Vibe - Cornsilk Vibe - Kernel Vibe - Alchemy Vibe - Yukon Colorfastness N/A Wet: 5 Wet: 5 N/A
to Crocking Dry: 5 Dry: 5
Seam Slippage Fill: 30 Fill: 45 Fill: 32 Fill: 30
Warp: 44 Warp: 45 Warp: 41 Warp: 42
Tensile Strength Fill: 60 Fill: 60 Fill: 62 Fill: 60
Warp: 97 Warp: 95 Warp: 86 Warp: 97
Tear Strength: Fill: 6.9 Fill: 6.9 Fill: 6.9 Fill: 6.2
Tongue Tear Warp: 5.1 Warp: 5.1 Warp: 5.1 Warp: 3.1
Stain Resistant Passes Passes Passes Passes
TVI007 TVI017 TVI013 TVI108 TVI103
Vibe - Clementine Vibe - Sunset Vibe - Indian Summer Vibe - Sorbet Vibe - Grapevine Sulfide Stain Resistant Passes Passes Passes N/A
Cold Crack -20˚ -20˚ -20˚ -20˚
Colorfastness 650 Hours 650 Hours 650 Hours 650 Hours
to Light
Bleach Resistant Yes - 10% Dilution Yes - 10% Dilution Yes - 10% Dilution Yes - 10% Dilution
*Passes
Anti-Microbial
FINISHES Mildew Resistant
TVI106 TVI012 TVI008 TVI102 TVI009
Vibe - Lime Vibe - Grasshopper Vibe - Clover Vibe - Cornerstone Vibe - Cocoa

RECOMMENDED APPLICATIONS

TVI107 TVI004 TVI002 TVI006 TVI101
Vibe - Mermaid Vibe - Bombay Blue Vibe - Ball Point Vibe - Cityscape Vibe - Anchor
*ACT® Registered Certification Marks

24 25
